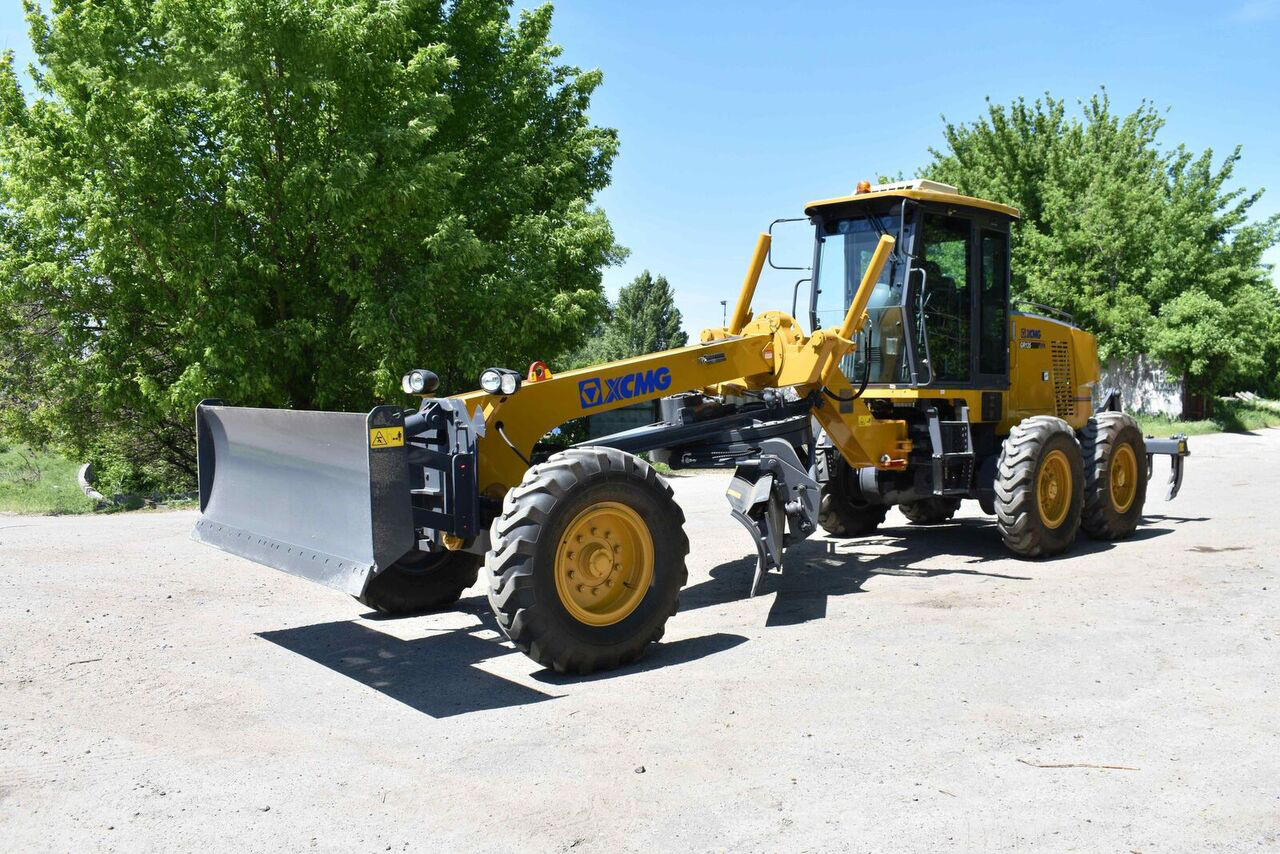

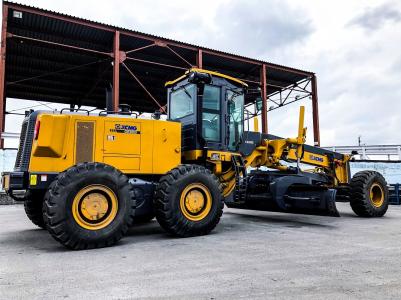

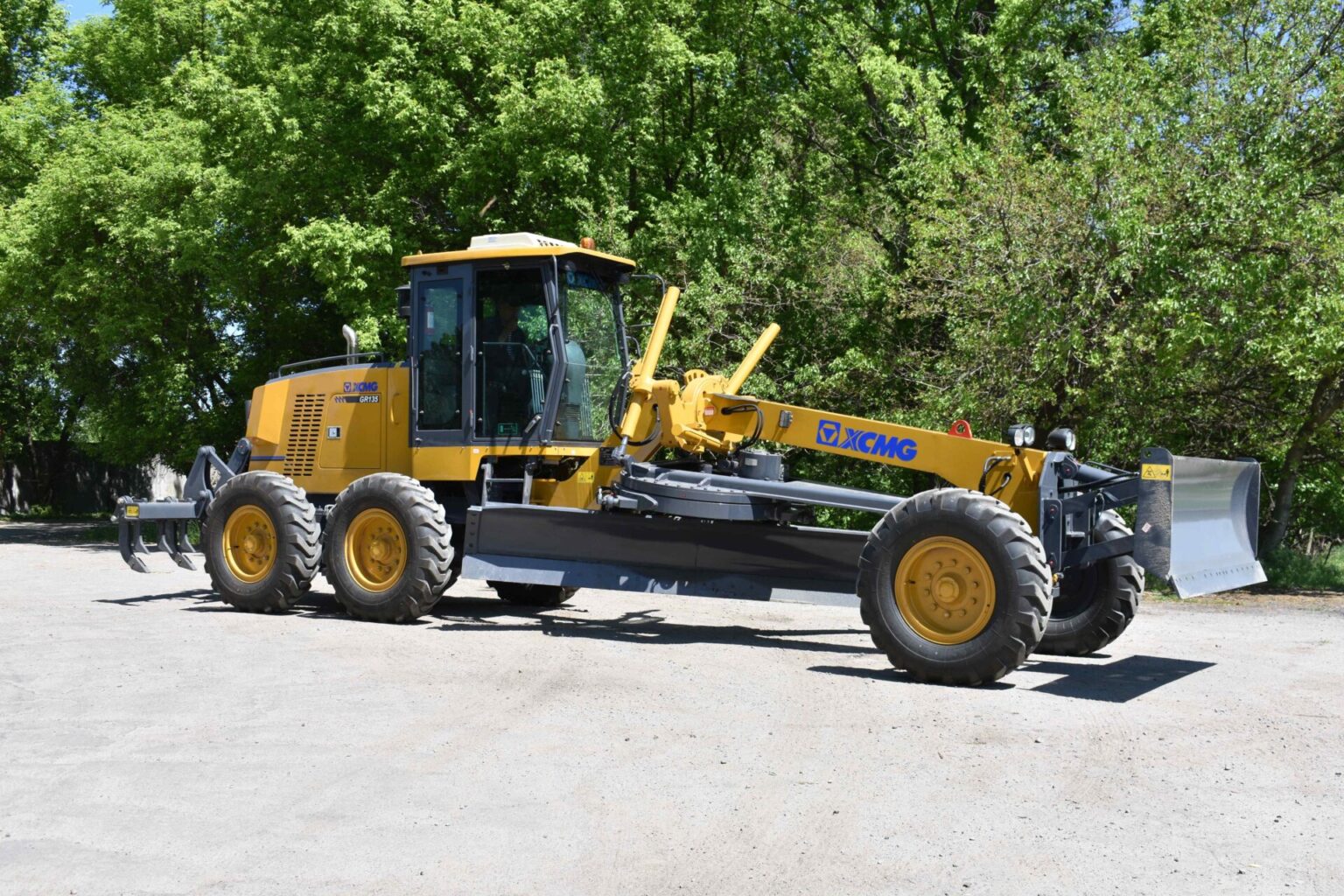

The XCMG GR135 high–performance grader is a modern product from the Chinese concern. These are special equipment that allows carrying out a wide range of construction, road and land reclamation activities.

A special material was used to manufacture the cabin, which reduces noise and vibration levels and protects the operator from dust and harmful substances released during the technological process. The wide viewing angle and ergonomic control panel guarantee simple and precise control of the working equipment. For comfort, a comfortable adjustable seat and equipment are provided in the cabin to maintain an optimal microclimate. On the wide monitor, the operator can observe the current parameters of the workflow, in case of an emergency, the system will sound an alarm.

Warranty: 24 months or 3000 m/h

Specifications:

Operating weight, t 11.2
Maximum pulling force, kN 61.3
Pressure in the system, Mpa 16
Fuel tank capacity, l 280
Hydraulic tank capacity, l 110
Transmission volume, l 26
Cooling tank capacity, l 50
Volume of the balancing trolley, l 46
Surmountable elevation, ° 20
Output power, kW/rpm 100/2200
Engine capacity, l 18
Environmental class Euro-2

External dimensions:

Total length, mm 8015
Overall width, mm 2380
Total height, mm 3050
The distance between the front and rear axles, mm 5780
The distance between the rear and middle axles, mm 1538
Maximum angle of rotation of the front wheels, ° ±49
Maximum angle of inclination of the front wheels, ° 17
Maximum angle of rotation of the frame, ° ±27
Knife dimensions, mm 3660 x 610
Track width, mm 2020
Minimum ground clearance, mm 515

Equipment:

XCMG Bridges
Hangzhou Checkpoint
Comfort Air Conditioning
Check the options with your manager.

Working area:

Maximum swing angle of the balancing trolley, ° ±16
Maximum lifting height of the knife, mm 410
Maximum cutting depth of the knife, mm 515
Maximum angle of lateral inclination of the knife, ° 90
Knife cutting angle, ° 54 - 90
The angle of rotation of the knife, ° 360
Minimum turning radius, mm 6600
