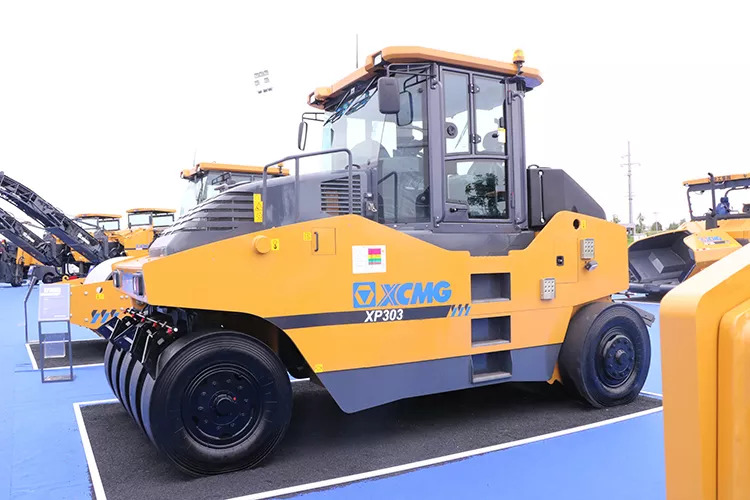

The XP303 pneumatic tire roller is a heavy-duty self-propelled static roller designed to seal the base bottom layer, the surface layer of asphalt pavement wear, and is also used in compaction of sand, gravel, or soil cushion layers. The model is specially designed for compaction, base and bottom soil layers and asphalt surfaces, and is an ideal solution for compaction during large-scale construction of high-quality roads, airports, ports, dams and industrial construction sites.

Warranty: 12 months or 2000 m/h

Specifications:

Operating weight, t 30.3
Fuel consumption, g/kWh ≤235 (1±5％)
Travel speed, km/h 17
Fuel tank capacity, l 180
Hydraulic tank capacity, l 100
Surmountable elevation, ° 20
Shangchai SC7H180 Engine Model
Output power, kW/RPM 132/1800
Environmental class Euro-3
Minimum working weight, t 15
Water weight, t 0.65
Overlap of front and rear tires, mm 65
Pressure of the hydraulic steering system, MPa 16
Packing pressure, kPa 200-545

Equipment:

Shangchai Engine
XCMG Bridge
XCMG checkpoint
Comfort Air conditioning, rear view camera

Working area:

Seal width, mm 2360
Minimum turning radius, mm 7620

External dimensions:

Total length, mm 4925
Overall width, mm 2530
Total height, mm 3370
Minimum ground clearance, mm 300

Pneumatic rollers
