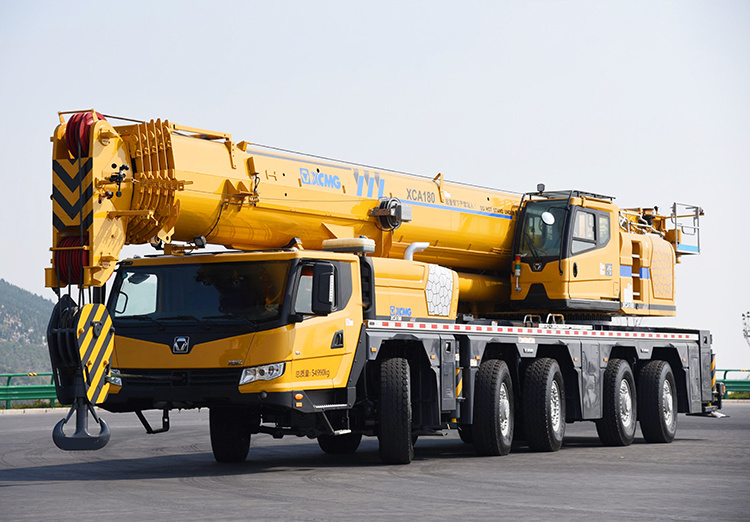

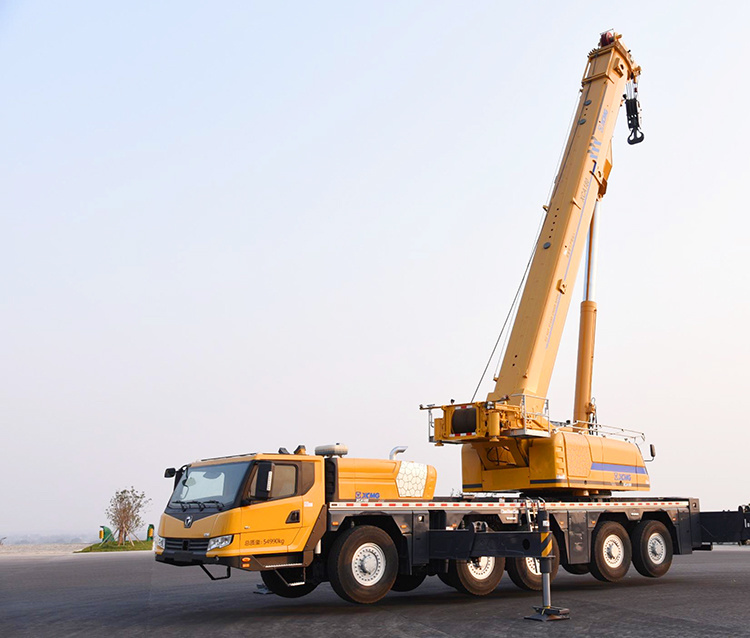

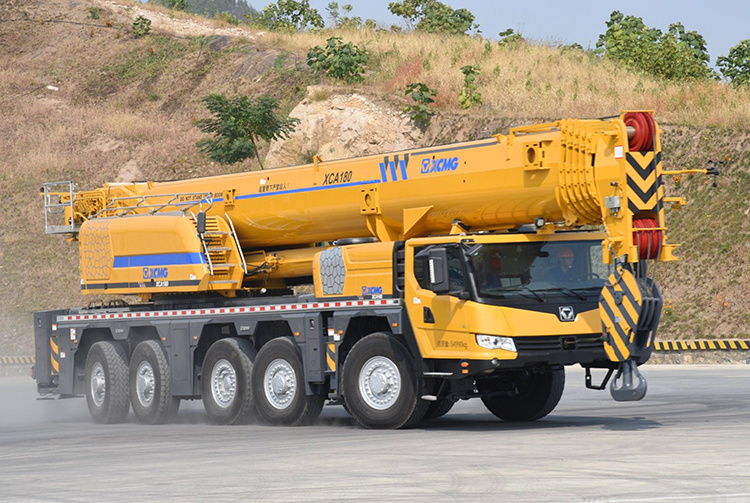

XCMG XCA180_S Off-road Truck Crane

All-axis steering, small turning radius, and free 6WD/8WD gear shifting are available. The 6WD is used for driving on roads, which is more economical. The 8WD is suitable for off-road driving and moving to a construction site. The maximum throughput is 50%, which allows you to occupy a leading position in the industry. A new fully enclosed hydraulic system for the lifting system, equipped with a precise double adjustment and control system, contributing to stable and trouble-free operation.

Warranty: 24 months without limitation of m/h

Specifications:

Maximum load capacity, t 180
Maximum permissible weight, t 55.7
Axle load, t 11.16 (1 axis) / 11.5 (2 axis) / 11.43 (3 axis) / 11.06 (4 axis) / 10.9 (5 axis)
Travel speed, km/h 80
Surmountable climb 37
Boom lifting time, from 60
The time of full extension of the boom, from 550
Maximum rotation speed, rpm 1.5
Maximum lifting speed of the main winch, m/min 135
The maximum lifting speed of the auxiliary winch, m/min 135
Joystick Control
Number of seats in the cabin, pcs 3
Engine Model Sinotruk MC13.48-30
Output power, kW/RPM 356/1900
Fuel consumption per 100 kilometers, l 65
Surmountable climb 37
Time of synchronous extension/retraction of the outrigger beam, from 50/40 (horizontal), 70/50 (vertical)
The wheel formula is 10×8×10

Equipment:

Sinotruk Engine
Comfort Climate control

Working area:

Main boom length, m 13.5
Length of fully extended boom, m 64
Length of the fully extended boom + jib, m 103.5
Angle of inclination of the jib, ° 0,20,40
Longitudinal distance of outriggers, m 9
Lateral distance of outriggers, m 8
Minimum nominal reach, m3

External dimensions:

Total length, mm 15630
Overall width, mm 2750
Total height, mm 3950
Wheelbase, mm 2500/1650/2500/1650
Track, mm 2340
Minimum ground clearance, mm 330
