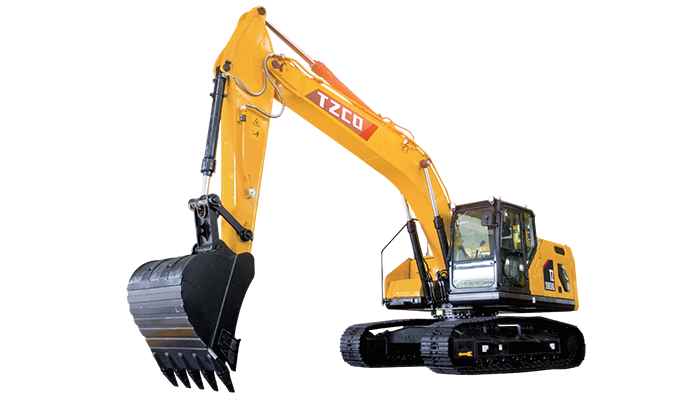

The TZ260EXD model
Operating weight
26705 kg
Bucket volume
1.5 m3
Engine power
203 hp / 2000 rpm.
Engine model
Cummins QSB7
Movement speed
5.7 km/h
Max. digging radius
10356 mm
Max. digging depth
6771 mm
Max. digging height
9889 mm
Overall length
10185 mm
Overall width
3190 mm
Overall height
3121 mm

Crawler excavators
