Caterpillar LISHIDE SC325.10M reloaders

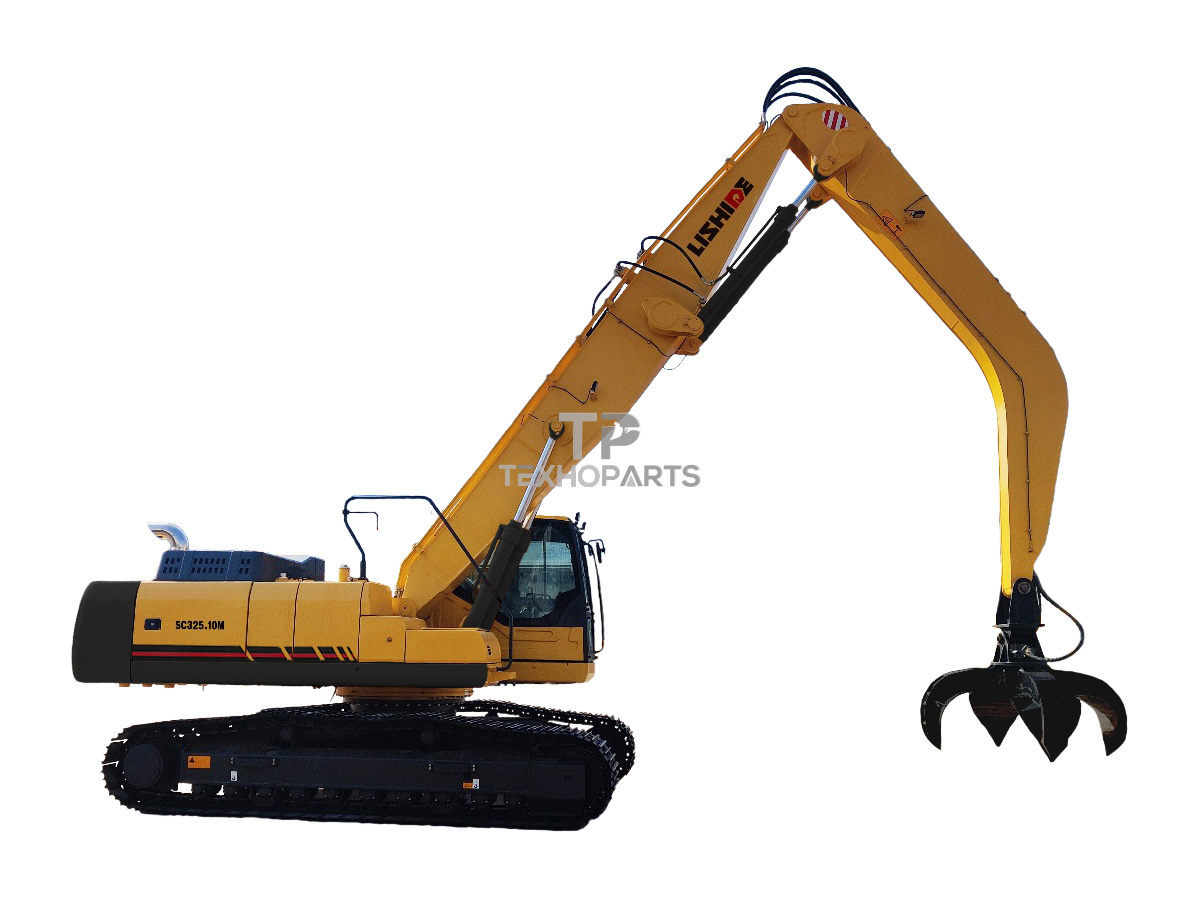

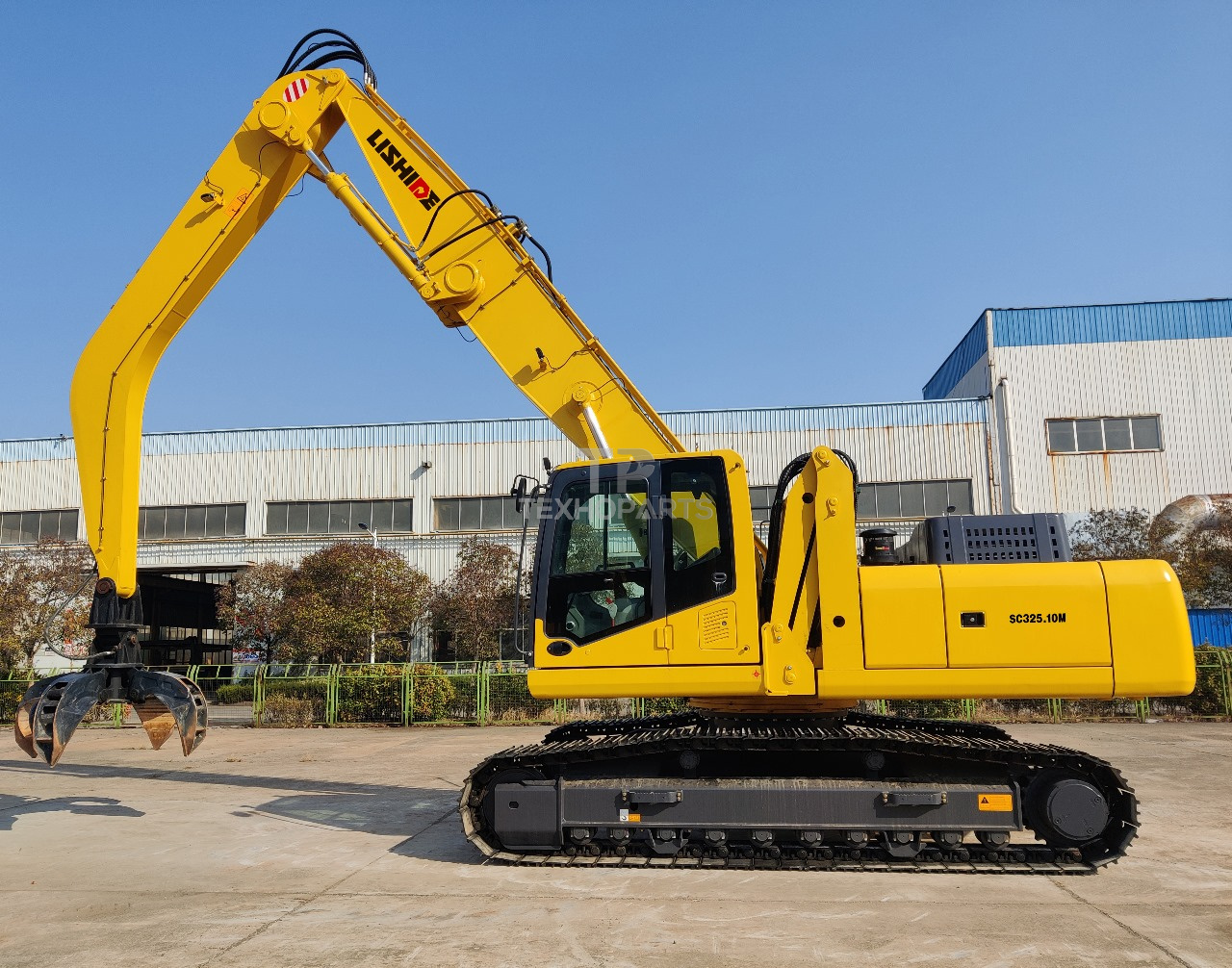

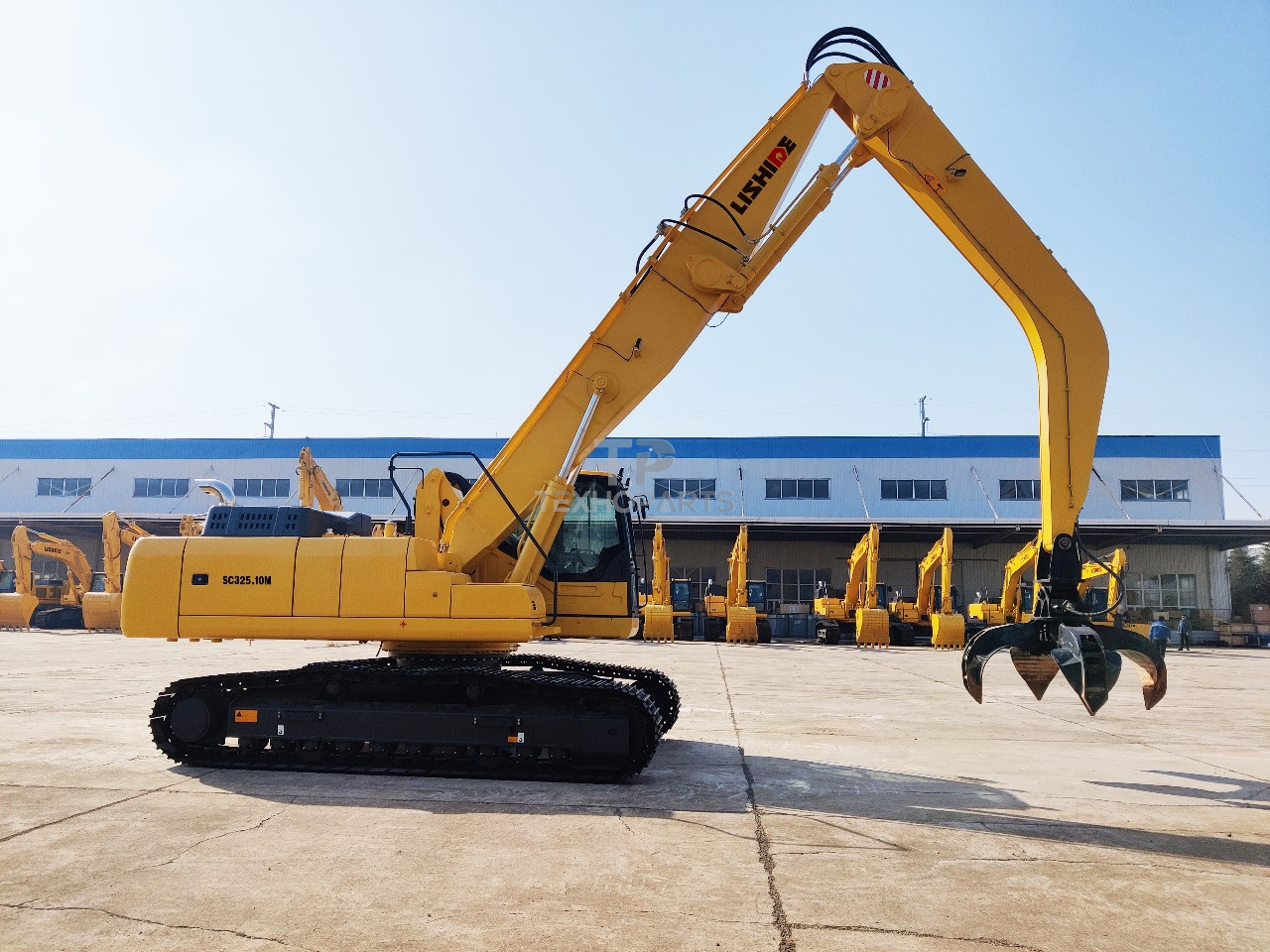

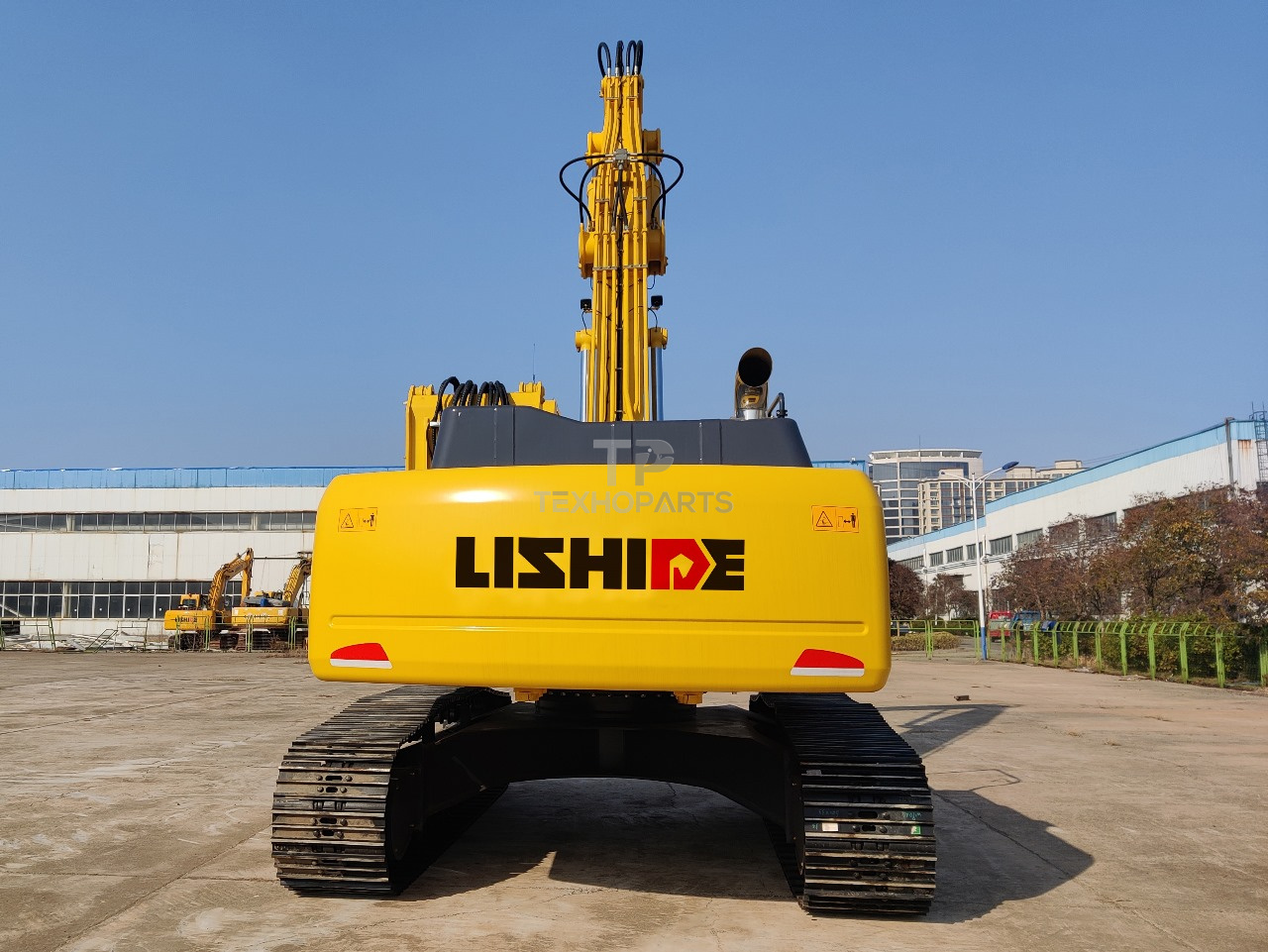

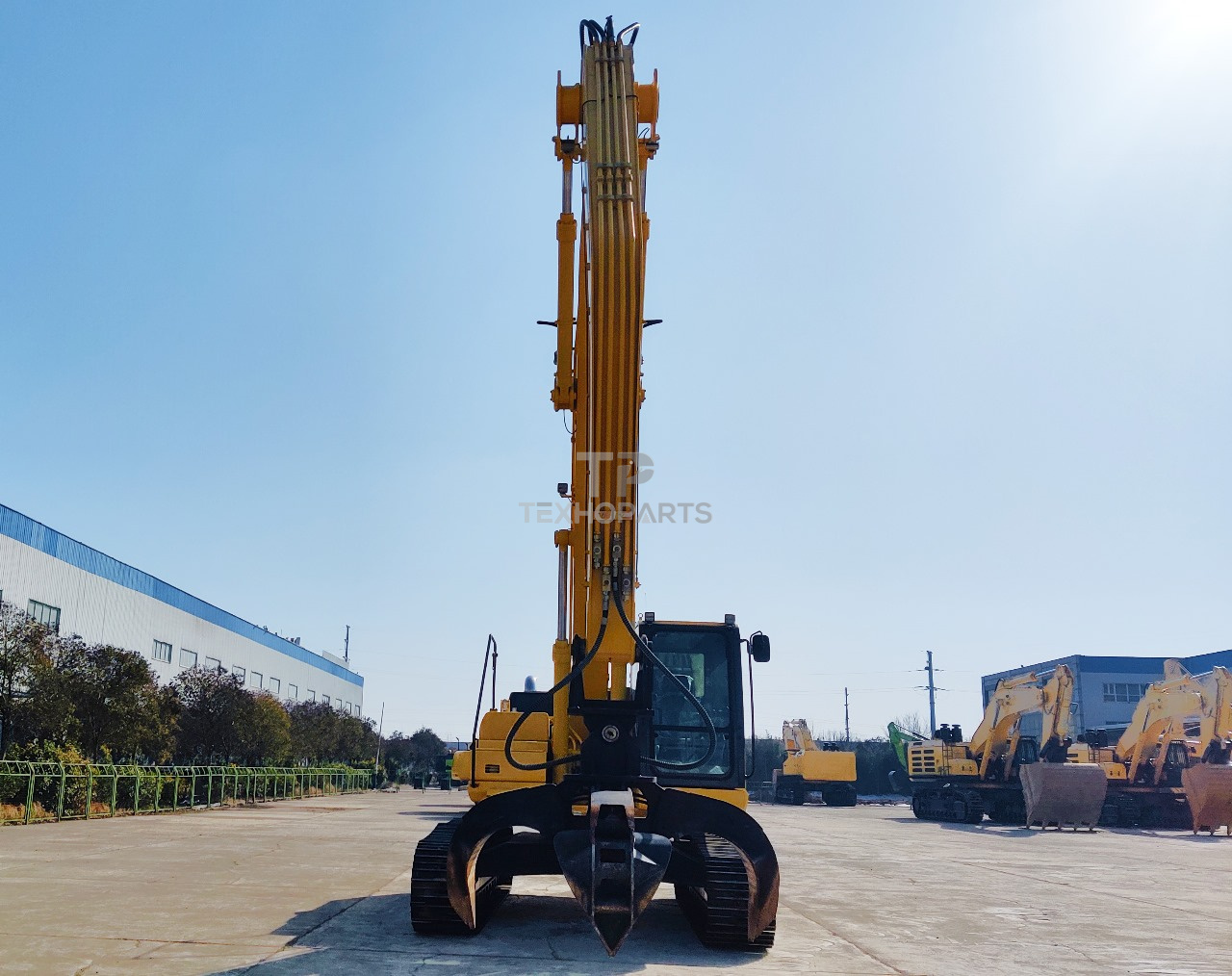

Excavator loader Lishide SC325.10M claw

The LISHIDE SC325.10M excavator loader with a claw (grab) grip is a high–performance and reliable equipment designed for moving and storing various loads.
LISHIDE transloaders are distinguished by their power, durability and reliability, which makes them the optimal choice for use in ports, metallurgical companies and timber enterprises. The hydraulic lift of the cab provides the operator with an improved view during loading and unloading, stacking and other operations, increasing the efficiency and safety of work. The lifting cabin allows the loader to be transported by trawl along public roads.

The equipment is equipped with:
· Cummins engine, characterized by high power and economy.
· a lifting mechanism that guarantees a firm fixation of materials such as lumber, fittings, pipes, etc.
· tracked, which allows it to operate in off-road conditions and on soils with low load-bearing capacity.

The technology allows you to use a wide range of quick-release attachments to perform various tasks.

Escort:
· Service, warranty, and post-warranty service.
· A complete set of necessary documents.
· All taxes and fees are included in the price.
· The possibility of leasing.

Condition: New

Brand: LISHIDE

Main Features:

Operating weight, kg 31000
Boom length, 6800 mm
Handle length, mm 5600
Capture volume, m 30.6
Engine power, kW/hp 150/204
Engine speed, rpm 2000
Travel speed, km/h 5,9/3,6
Platform rotation speed, rpm 12.9
Specific pressure on the ground, kPa 57
Fuel tank capacity, l 400
Surmountable lift, %(deg.) 70(35)

Overall dimensions

Overall length, mm 10130
Overall width, mm 3300
Overall height (boom), mm 3580
Shoe width, mm 600
Track gauge, mm 2700
The distance between the axes, mm 4020
Ground clearance, mm 480
Turning radius of the rear part of the platform, mm 3200
Track reference length, mm 3300
Track length,mm 4830

Working areas

Maximum unloading height, mm 12600
Minimum turning radius, mm 3040

Engine

CUMMINS QSB7 Engine Model

Hydraulics

CCHC Hydraulic Pump CCHC
Hydraulic Distributor
CCHC Stroke Reducer
CCHC Rotary Gear
